绿联净化带您了解黑烟净化器旁通系统

2025-05-28 09:28:57

0次

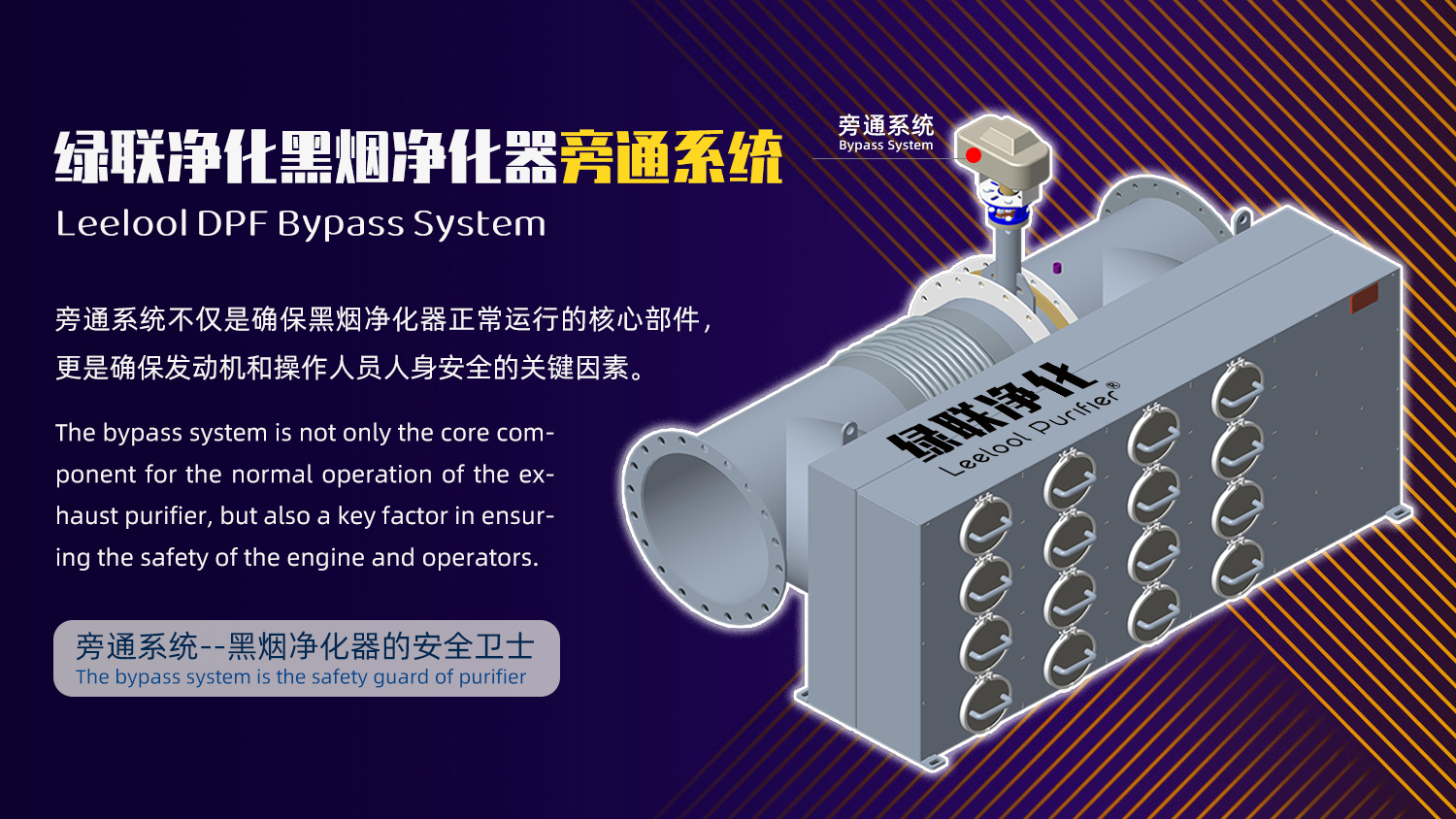

绿联净化Leelool黑烟净化器旁通系统

Leelool DPF Bypass System

前言

在黑烟净化器中，旁通系统承担着开/闭旁通管路从而控制废气流向的作用。黑烟净化器正常工作时，旁通系统关闭，发动机尾气通过净化器处理后排出。黑烟净化器对启动黑烟处理完成后，旁通系统自动打开，发动机尾气通过旁通管道直接排出。

In DPF, the bypass system plays a role in opening or closing the bypass pipeline to control the flow of exhaust gas.When DPF is working normally, the bypass system is closed and the engine exhaust is purified by the purifier before being discharged.After the DPF completes the exhaust treatment during startup, the bypass system opens and the engine exhaust is directly discharged through the bypass pipe.

旁通系统不仅是确保黑烟净化器正常运行的核心部件，更是确保发动机运行和操作人员人身的关键因素。因此，在黑烟净化器的选择、安装和维护中，整个旁通系统的性能和可靠性尤为重要。

The bypass system is not only the core component for the normal operation of the exhaust purifier,but also a key factor in ensuring the safe operation of the engine and the personal safety of the operators.Therefore,in the selection, installation,and maintenance of exhaust purifiers,the performance and reliability of bypass system are particularly important.

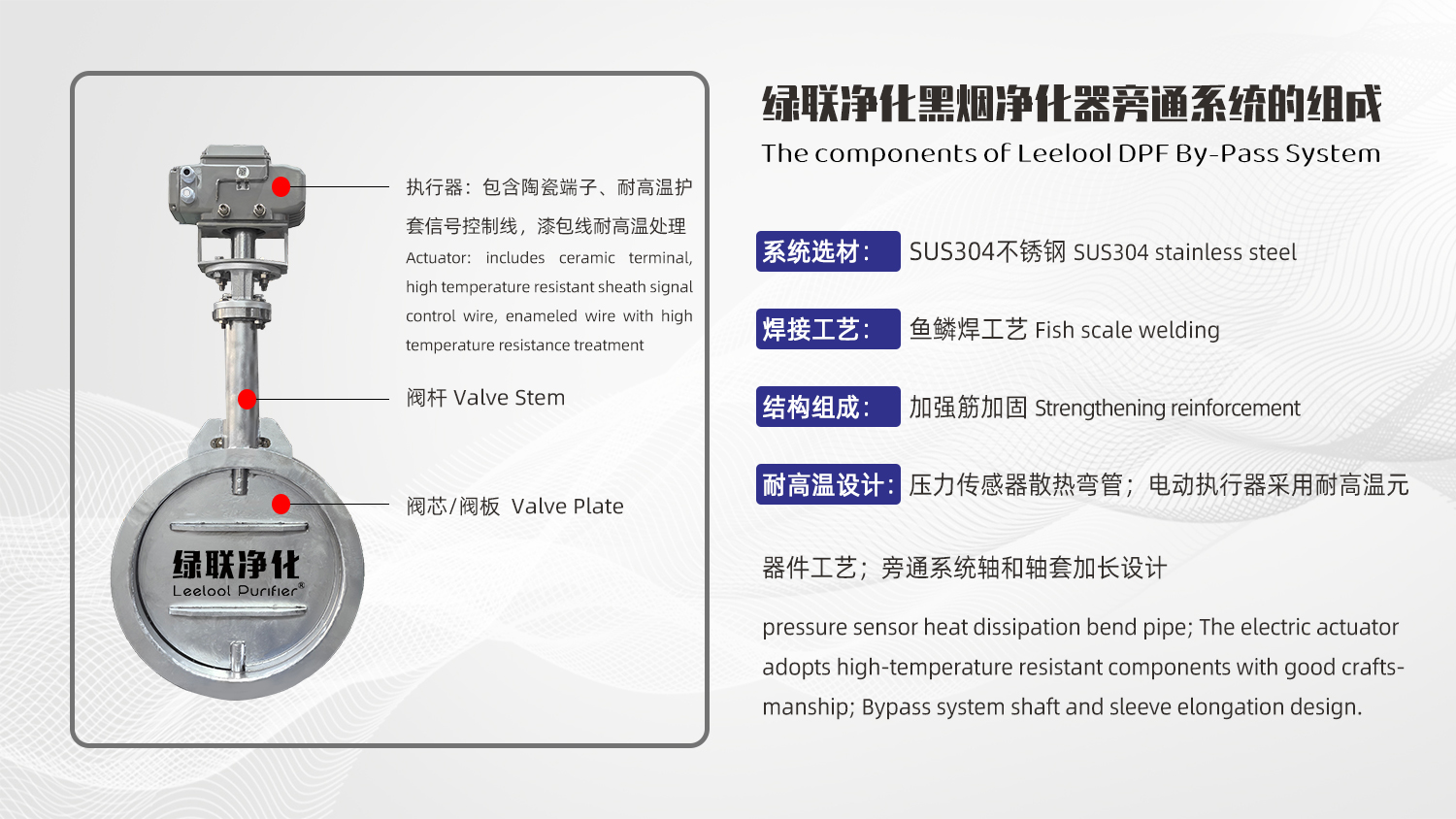

旁通机构的组成

①旁通机构（阀体，阀芯/阀板，阀杆，执行器：陶瓷端子、耐高温护套信号控制线，漆包线耐高温处理）；②旁通管（等于净化器进/出口烟管直径）；③压力信号采集及传输：压力传感器要安装散热管+散热翅片；④控制系统：电控箱、控制模块、继电器、指示灯、按钮及控制线路。作用是净化器工作状态显示，采集的信号处理，输出信号给旁通系统进行开/闭。

①Bypass mechanism (valve body, valve core and valve plate, valve stem, actuator: ceramic terminal, high temperature resistant sheath signal control wire, enameled wire with high temperature resistance treatment).②Bypass pipe (equal to the diameter of the inlet or outlet smoke pipes of the purifier).③Pressure signal acquisition and transmission: The pressure sensor should be equipped with a heat pipe and heat dissipation fins.④Control system: electrical control box, control module, relay, indicator light, button and control circuit. The function is to display the working status of the purifier, process the collected signals, and output signals to the bypass system for opening or closing.

旁通系统性能的影响因素

1. 系统的选材

Material selection

2. 系统的焊接工艺

Welding process

3. 系统的结构组成

Structural composition

4. 耐高温电动执行器

High temperature resistant electric actuator

5.控制系统：背压信号采集传感器及信号输送线路

Control system: Back pressure signal acquisition sensor and signal transmission line

本期看点

绿联净化黑烟净化器旁通系统特点

PART.1

旁通系统装配过程

Bypass syetem assembly process

1.1压盖安装Install cover

连接和固定旁通系统中心轴点，增加密封性

Connect and fix bypass system to increase sealing performance

1.2支架安装Install bracket

保证旁通系统轴心点位于中线

Ensure bypass system axis point is located at the centerline

1.3旁通系统轴和轴套安装/联轴器安装

Install bypass system shaft and sleeve/Install coupling

1.4垫片安装Install gasket

平衡基座的同时隔绝与执行器间的热度

Balance the base while isolating heat

1.5电动执行器安装Install electric actuator

PART.2

旁通系统与电控箱联动调试

Linkage debugging

2.1电控箱初始参数设定Set initial parameters

联动电控箱，调节背压数值

Linkage control box and adjust back pressure value

2.2压力传感器测试Pressure sensor testing

手动模式下测试系统打开的功能（X6倍速）

Test the function of system opening in manual mode

手动模式下测试系统关闭的功能（X6倍速）

Test the function of system closing in manual mode

2.3模拟运行工况调试Simulate debugging

模拟超压工况，记录报警时间（X5倍速）

Simulate overpressure conditions and record alarm time

PART.3

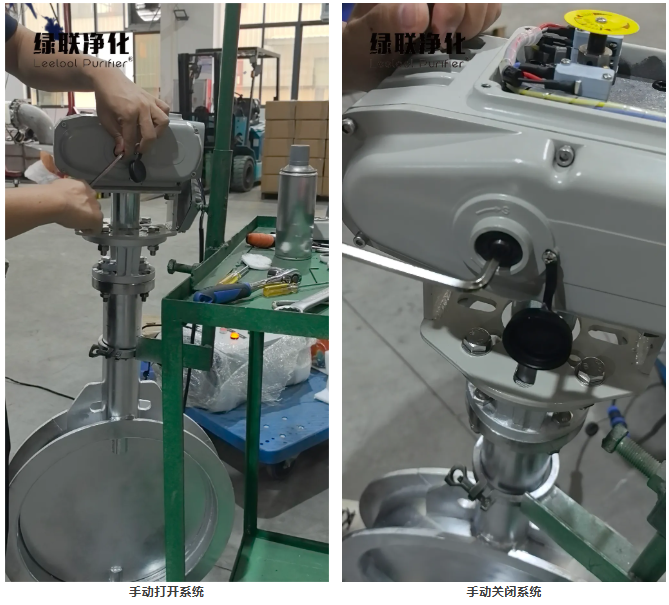

手动开闭旁通系统的方法演示

Manual opening and closing bypass system

3.1.手动打开系统操作方法演示

Demo of manual system opening operation method

使用内六角螺栓插入手动摇杆位置，逆时针旋转，约150圈

Insert the hexagonal socket bolt into the manual joystick and rotate counterclockwise for about 150 turns

系统逐渐打开（X3倍速）The system gradually opens

3.2.手动关闭系统操作方法演示

Demo of manual system closing operation method

使用内六角螺栓插入手动摇杆位置，顺时针旋转，约150圈

Insert the hexagonal socket bolt into the manual joystick and rotate it clockwise for about 150 turns

系统逐渐关闭（X3倍速）The system gradually opens

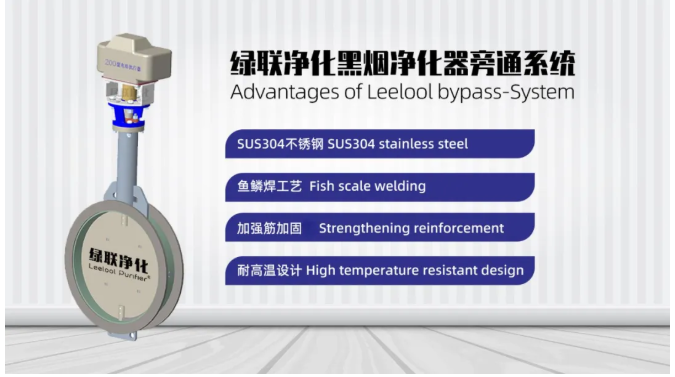

本期小结

绿联净化黑烟净化器旁通系统特点

Advantages of Leelool bypass-system

系统选材：SUS304（厚度≥10mm）SUS304（Thickness ≥ 10mm）

焊接工艺：鱼鳞焊工艺Fish scale welding

结构组成：加强筋加固Strengthening reinforcement

耐高温设计：压力传感器散热弯管；电动执行器采用耐高温元器件工艺；旁通系统轴和轴套加长设计

High temperature resistant design: pressure sensor heat dissipation bend pipe; The electric actuator adopts high-temperature resistant components with good craftsmanship; Bypass system shaft and sleeve elongation design
